3D MODEL DISPLAY
SCENE

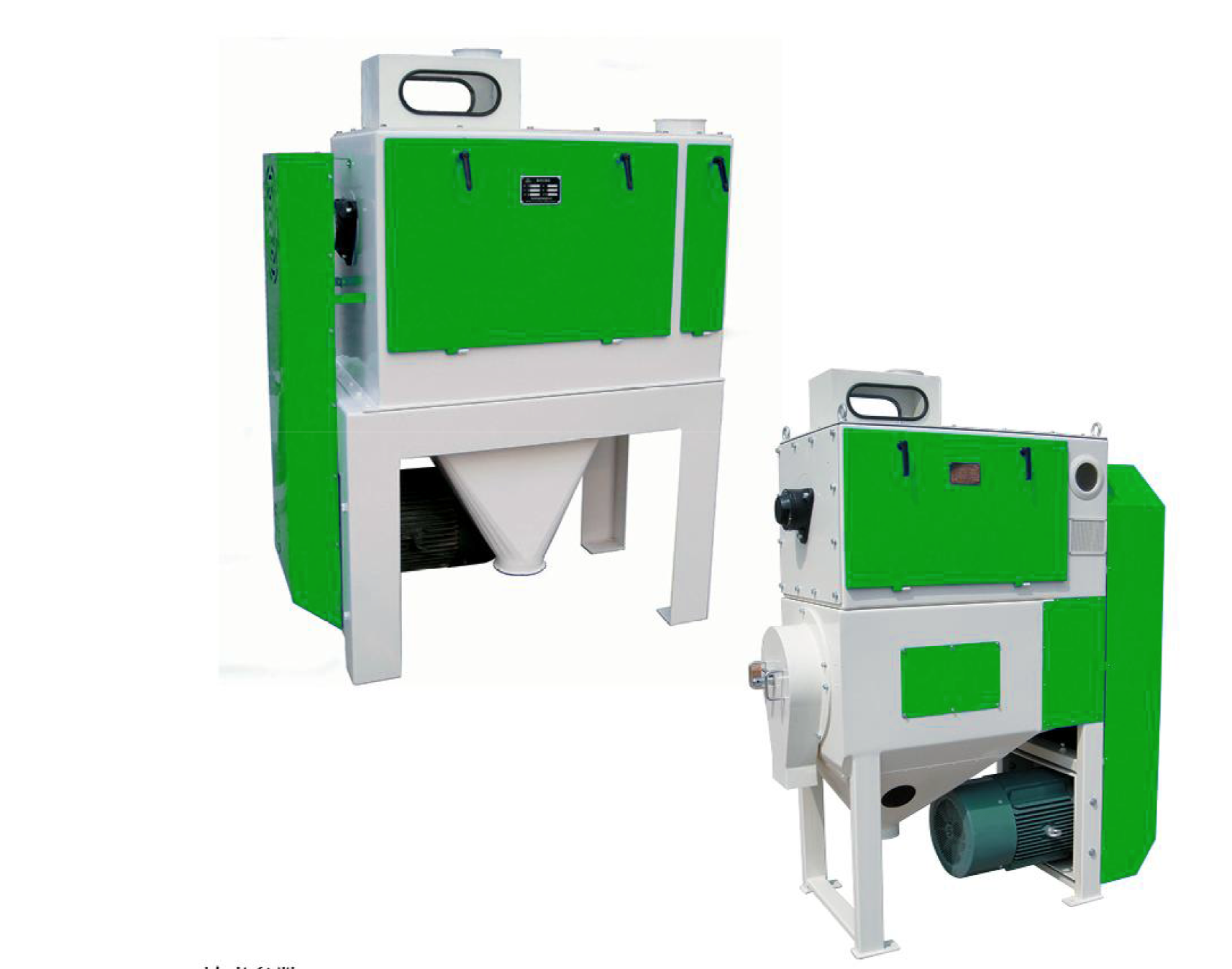

Roller Mill-Model MSD and MSQ
Product feature and structure:
·Excellent grinding capability
·Reliable feed mechanism with electrical or pneumatic controls
·Pneumatic operated roller engagement/disengagement mechanism
·User friendly roller gap adjustment mechanism for precise operation
·Tooth synchronous belt drive to provide differentiated motion of the rollers for quiet operation and low maintenance
·Vented grinding chamber for flour spill free production
.Integrated structure of cast-iron base complete with welded steel framework
·Laser cutting applies to sheet metal components for quality and accuracy
·Carbon dioxide gas shielded welding workmanship model
·Quality SKF bearings
·World top brand electric and pneumatic components
·Powdercoated parts and components for best quality and duration
Technical Parameter
Model Technical parameter parameter |
Size(mm) |
Weight(kg) |
Inlet diameter(mm) |
|
φD |
φd |
|||
MSD/Q125*30*2 |
2060*1676*2005 |
4650 |
160 |
150 |
MSD/Q100*25*2 |
1810*1676*2005 |
3950 |
160 |
150 |
MSD/Q80*25*2 |
1610*1526*1955 |
2850 |
160 |
150 |
EQUIPMENT
ROLLER MILL(MSD/MSQ)
